Arc and Ground Fault Circuit Interrupters: Critical Safety and Protection for Commercial Circuits
Arc Fault Circuit Interrupters (AFCI) and Ground Fault Circuit Interrupters (GFCI) are specialized devices mandated to protect personnel and property from two distinct and serious electrical hazards: electrical fires (arcs) and severe shock (ground faults). In commercial environments, where complex, high-load circuits run through extensive ceiling and wall spaces, these devices are mission-critical. Their deployment goes beyond simple circuit interruption, acting as a proactive layer of fire prevention and shock hazard mitigation essential for maintaining regulatory compliance and business continuity.
Core Technology and Hazard Detection
While both serve as Circuit Interrupters, they address different fault types:

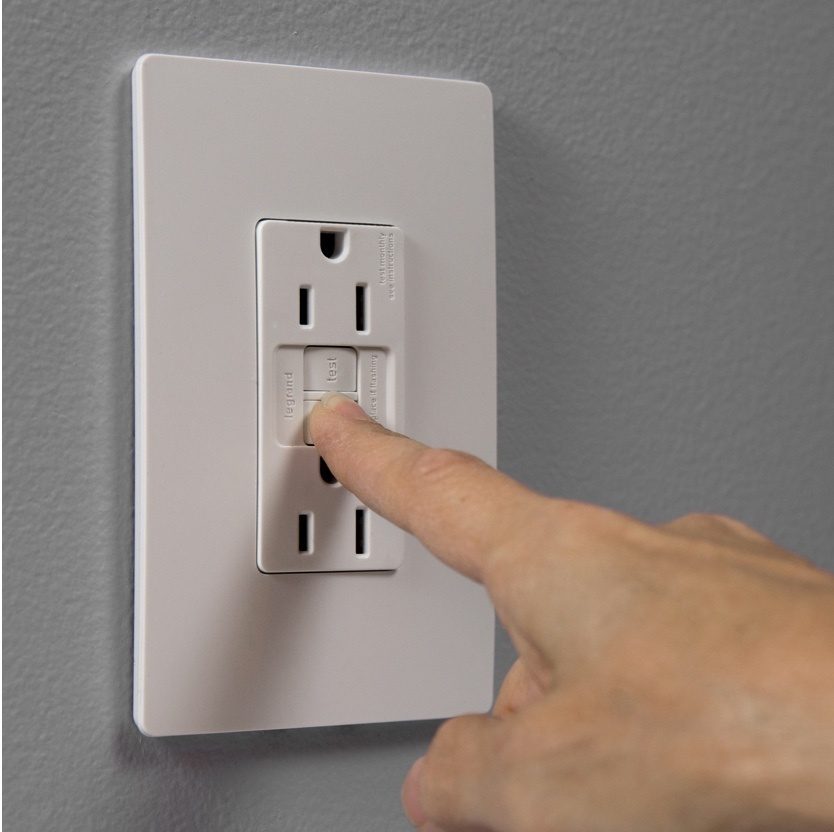

- Ground Fault Circuit Interrupters (GFCI): These devices detect tiny discrepancies, or leakage current, between the hot and neutral conductors. If the current imbalance exceeds a specified trip level (typically 5mA), indicating current is escaping through an unintended path (often a person or wet surface), the GFCI instantly trips. This is crucial for mitigating shock hazards in areas prone to moisture.
- Arc Fault Circuit Interrupters (AFCI): These intelligent devices analyze the electrical waveform to detect the unique signatures of dangerous arcing—sparks across damaged insulation or loose connections. Arcing is a primary cause of electrical fires. AFCIs trip before the heat generated by the arc can ignite materials, providing critical fire prevention in areas with long cable runs or where wiring may be subject to stress.
Commercial Application and NEC Compliance
NEC Compliance dictates specific placement for both AFCI and GFCI protection in commercial and institutional settings, making expert installation necessary:
- GFCI Requirements: Mandatory in high-risk areas such as restrooms, commercial kitchens, break rooms, rooftop access points (for HVAC maintenance personnel), and all outdoor receptacles. They are vital for protecting personnel operating equipment near water sources or on grounded surfaces.

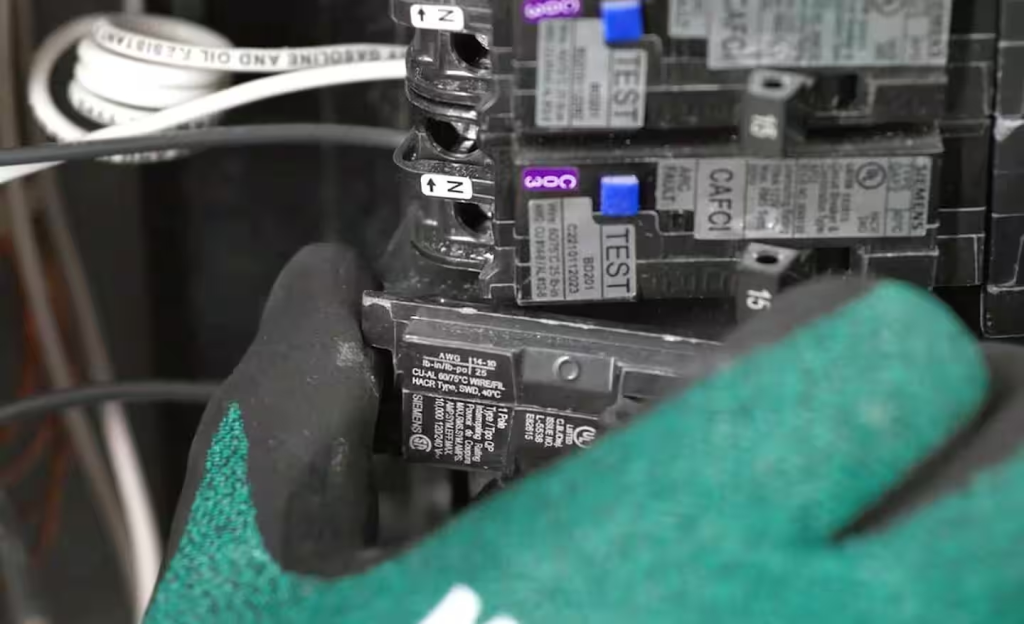

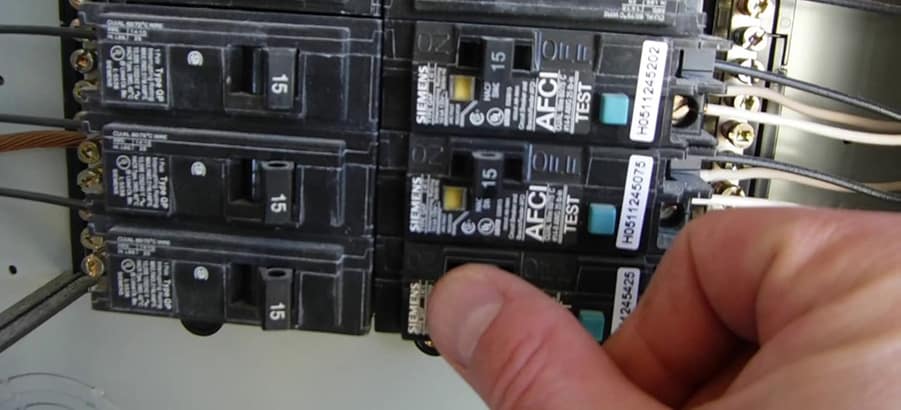

- AFCI Requirements: Often required in commercial sleeping quarters (e.g., assisted living, dormitories, hotel rooms) and increasingly specified for certain lighting circuits and sensitive circuits where equipment protection is paramount. These devices are integrated directly into panelboards or specific receptacles.
Protection and System Integration
Properly implemented AFCI/GFCI protection is seamlessly integrated into the overall power distribution system. These advanced safety devices ensure that faults are isolated quickly at the circuit level, preventing localized issues from escalating into system-wide problems or resulting in costly business downtime. By protecting branch circuits from dangerous conditions, they safeguard the vast array of electronic equipment connected downstream, contributing directly to the facility’s overall electrical safety and risk mitigation strategy.
Partner with 4th Systems for Certified Circuit Protection
The correct selection and installation of Arc and Ground Fault Circuit Interrupters across complex commercial environments demand specialized knowledge of the National Electrical Code (NEC) and fault coordination. Improper installation can lead to nuisance tripping and service disruptions. 4th Systems specializes in the certified deployment, testing, and documentation of commercial-grade Circuit Protection. We ensure your system is compliant, safe, and robust enough to handle high-load demands while protecting your personnel and assets. Contact 4th Systems today for a consultation on modernizing your electrical safety infrastructure.
