Panel & Service Meter Upgrades
Residential Panel & Service Meter Upgrades
The electrical panel is the central nervous system of a modern home. As residential energy demands increase with the adoption of electric vehicles, heat pumps, and high-performance kitchens, many original service entrance setups become insufficient or unsafe. 4th Systems provides comprehensive residential upgrades to ensure your home meets current safety standards and future power requirements.
Service Overview

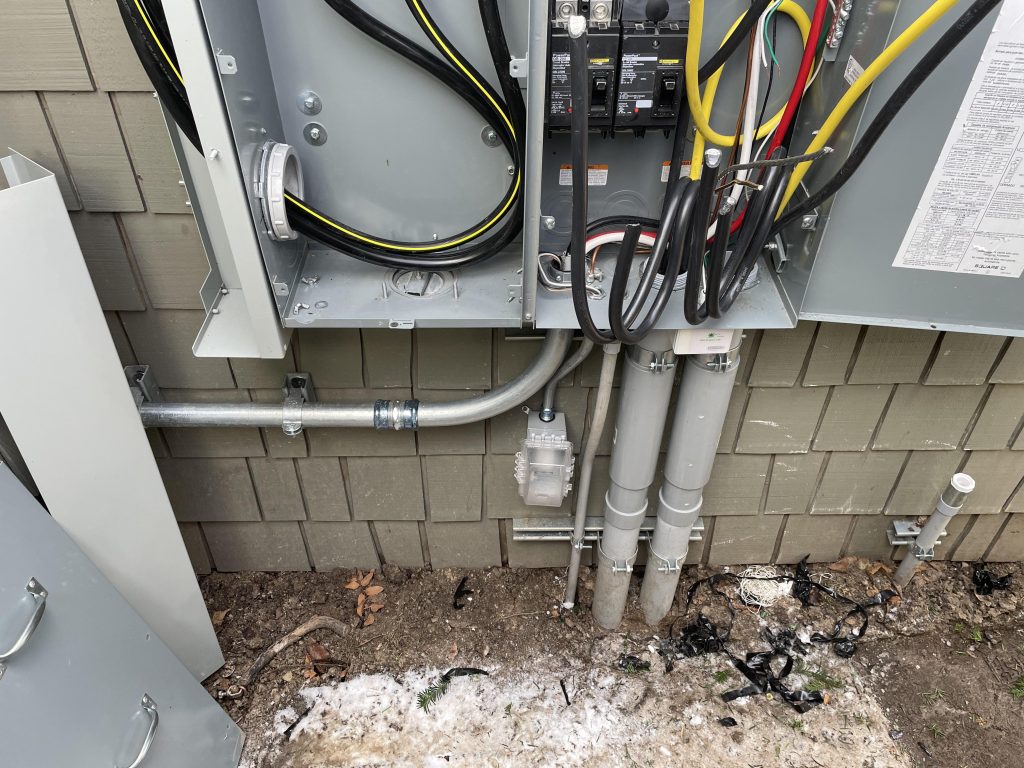

A residential service upgrade typically involves replacing the existing “Load Center” (electrical panel) and the exterior “Service Entrance” equipment to accommodate higher amperage. We specialize in transitioning homes from legacy 60A or 100A systems to the modern standard of 200A or 400A service.
Primary Residential Solutions
- Main Service Upgrades (200A – 400A): Increasing the total capacity of the home to support heavy loads like HVAC systems, EV chargers, and hot tubs.

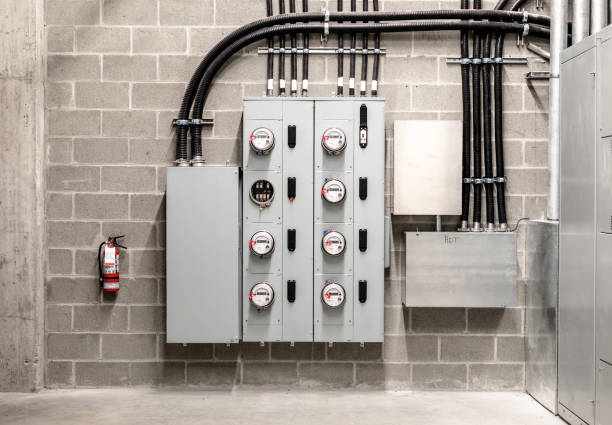

- Meter Socket Replacement: Installing modern, utility-approved meter bases with proper bypass levers and weather-tight seals.
- Panel Modernization: Replacing hazardous, outdated brands (e.g., Zinsco, Federal Pacific) with modern, reliable equipment from manufacturers like Square D or Eaton.
Sub-panel Installation: Adding secondary distribution points for finished basements, detached garages, or home workshops.
Technical Specifications & Code Compliance
Our upgrades are performed in strict accordance with the National Electrical Code (NEC) and local utility requirements.
Feature | Residential Standard | Purpose |
Main Breaker | $200\text{A}$ (Standard) | Overcurrent protection for the entire home. |
Grounding System | Dual $8’$ Grounding Rods | Directs lightning and surges safely into the earth. |
Bonding | Cold Water & Gas Bonding | Prevents metallic piping from becoming energized. |
Surge Protection | Type 2 SPD | Protects sensitive home electronics and smart appliances. |
Arc-Fault (AFCI) | Required for living areas | Detects dangerous sparking to prevent house fires. |
The Residential Workflow
- Demand Load Calculation: We perform a mathematical analysis of your home’s square footage and fixed appliances to determine the required service size.
- Utility Coordination: We manage the “Cut and Reconnect” schedule with the utility company to minimize downtime.
- Service Entrance Upgrade: We replace the exterior “Service Mast,” “Weather Head,” and “Service Entrance Cable (SEC)” with larger-gauge copper or aluminum conductors.
- Interior Panel Swap: The old panel is removed, and a new load center is installed, including proper labeling of all branch circuits.
- Inspection & Certification: Final verification by the Authority Having Jurisdiction (AHJ) to ensure the system is safe for long-term use.
When is an Upgrade Necessary?
- Flickering Lights: Occurs when large appliances (like AC units) kick on, indicating a voltage drop.
- Frequent Tripping: The main breaker or branch breakers trip often due to circuit overload.
- Physical Damage: Corrosion or “burning” smells inside the panel.
Insurance Requirements: Many insurance companies now require the removal of specific legacy panels before renewing a policy.
