Infrared & Thermal Imaging / Scanning: Visualizing the Invisible
Infrared Thermography (IRT) is a non-destructive diagnostic technology that allows our engineers to “see” heat. At 4th Systems, we use high-resolution thermal imaging to identify thermal anomalies that are invisible to the naked eye. By detecting hotspots, loose connections, and insulation failures early, we help you prevent costly downtime, electrical fires, and energy waste without ever having to shut down your power.
Precision Diagnostics Across All Sectors
Thermal imaging is one of the most cost-effective preventative maintenance tools available, providing a literal “snapshot” of your system’s health.

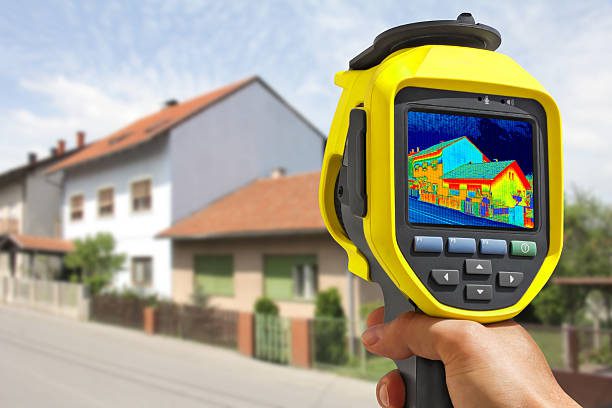

- Residential: Building Envelope & Energy Audits: For homeowners and developers, we use infrared scanning to identify “missing” insulation, moisture intrusion behind walls, and air leaks around windows or doors. It is also an essential tool for identifying underfloor heating leaks or overloaded residential circuit breaker panels that could pose a fire risk.
- Commercial: Preventative Maintenance for High-Rises: In commercial office buildings and retail centers, we scan main switchgear, bus ducts, and distribution panels during peak load hours. This identifies “loose lugs” or failing components that are generating excess heat. Detecting a hot connection during a routine scan allows for a scheduled repair, avoiding an emergency power outage that could disrupt hundreds of tenants.

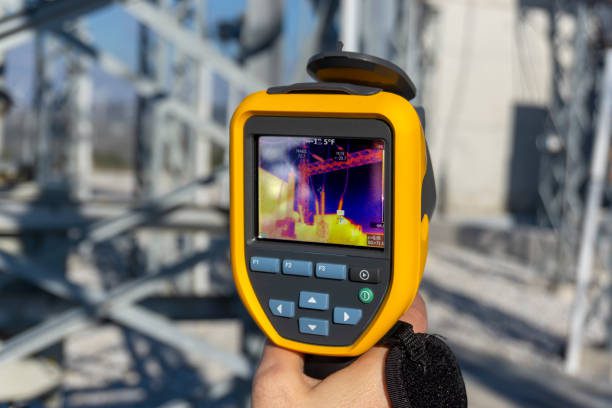

- Industrial: Mechanical & Electrical Reliability: Industrial environments rely on heavy machinery and continuous power. We use thermal imaging to monitor motor bearings, gearbox temperatures, and transformer cooling fins. By identifying a bearing that is starting to overheat or a transformer phase that is unbalanced, we provide the data needed to perform maintenance during planned shutdowns, protecting your production line from catastrophic failure.
The 4th Systems Infrared Advantage
Our scanning services are performed by certified thermographers who understand the science behind the image:
- Non-Invasive Testing: We perform our scans while your equipment is energized and under normal load, meaning zero interruption to your daily operations.
- Certified Thermographers: We don’t just take pictures; our team understands emissivity, reflected temperature, and thermal physics to ensure accurate data interpretation.
- Comprehensive Reporting: Every scan includes a detailed report featuring both “digital” and “thermal” images of every anomaly, along with temperature differentials ($\Delta T$) and prioritized repair recommendations.
- Fire Prevention: Insurance providers often require or offer discounts for annual infrared scans, as they are a proven method for reducing the risk of electrical fires.
Seeing Is Believing
A hotspot is often the final warning sign before an electrical component fails or ignites. With 4th Systems Infrared & Thermal Imaging, you gain the peace of mind that comes from knowing your system is running cool and efficiently. Whether you are looking to lower your energy bills or protect an industrial plant, we provide the thermal clarity you need to stay safe.
